The Ultimate Guide to Helical Pile Engineering Design in Australia

September 6, 2025

The adoption of helical piles across Australia is driven by a unique set of advantages that make them particularly suitable for our diverse environmental and construction conditions.

Helical pile engineering design is a specialised process that ensures your building has a safe, stable, and long-lasting foundation.

Tailored specifically for Australian conditions, this guide covers everything from initial site assessments and geotechnical investigations to the final installation and engineering certification.

We explore how these advanced foundation systems comply with Australian Standards like AS 2159, providing a reliable solution for residential, commercial, and infrastructure projects across the country.

Understanding this process is key to making an informed decision for your construction project’s success.

Here is a quick summary of the essential points covered in this guide:

What They Are: Helical piles, also known as screw piles in Australia, are steel screw-in foundations used to create a strong, deep foundation system.
The Design Process: A certified engineer must design the system based on a project’s specific structural loads and the findings of a mandatory geotechnical report (soil test).
Australian Standard Compliance: All helical pile design and helical pile installation must comply with Australian Standard AS 2159 to ensure safety, durability, and legal compliance.
Solving Soil Problems: They are an ideal solution for common Australian ground issues, including highly reactive clay soils, soft sandy soils, and sites with uncontrolled fill, by transferring loads to stable ground deep below the surface.
Installation and Verification: Piles are screwed into the ground with hydraulic machinery. The installation torque is monitored in real-time to verify the pile has met its designed load-bearing capacity.
Cost-Effectiveness: While material costs can vary, helical piles often lead to overall project savings due to faster installation, no soil removal, and reduced labour costs compared to traditional concrete piers.
Wide Range of Applications: They are widely used for new home foundations, foundation repair and underpinning, commercial buildings, and infrastructure projects like solar farms and boardwalks.

What Are Helical Piles and Why Are They Used in Australia?

Before exploring the detailed design process, it is important to understand what helical piles are and why they have become a preferred foundation solution for many Australian projects.

They offer a modern, efficient alternative to traditional foundation methods like bored concrete piers.

Defining Helical Piles (and Screw Piles)

A helical pile is a type of deep foundation system made from a central steel shaft with one or more helix-shaped plates welded to it. Think of it as a large steel screw.

These piles are mechanically screwed into the ground using hydraulic machinery until they reach a specified depth or a firm, load-bearing soil layer.

The term screw pile is used interchangeably with helical pile in Australia; they refer to the same product. The helix plates are engineered to pull the pile into the ground with minimal soil displacement, and once in place, they provide the bearing capacity needed to support the structure’s weight.

Key Advantages for Australian Projects

The adoption of helical piles across Australia is driven by a unique set of advantages that make them particularly suitable for our diverse environmental and construction conditions.

They can be installed quickly, often in just a day, and are ready to be loaded immediately, which significantly speeds up project timelines. Unlike concrete foundations, there is no curing time required.

The installation process generates very little noise and vibration, making helical piles an ideal choice for projects in established residential areas or environmentally sensitive locations.

The machinery used is often smaller and more agile than traditional piling rigs, allowing for work on sites with limited or difficult access.

This versatility makes them a practical solution for everything from backyard extensions to large-scale commercial developments.

The Helical Pile Engineering Design Process: A Step-by-Step Approach

A successful and safe helical pile foundation begins long before any machinery arrives on site. The helical pile engineering design is a methodical process undertaken by qualified geotechnical and structural engineers to create a solution tailored specifically to the project’s loads and the site’s ground conditions.

Stage 1: Initial Project Assessment and Consultation

The process begins with a detailed consultation to understand the project’s requirements. Engineers will review architectural and structural plans to determine the loads the foundation must support. This includes compression loads (the downward push of the building), tension or uplift loads (from wind or other forces), and lateral loads (sideways forces). This initial assessment establishes the performance criteria the helical pile system must meet.

Stage 2: Geotechnical Data Analysis

This stage is perhaps the most important part of the entire design process. Engineers will obtain and thoroughly analyse a geotechnical report for the site. This report, prepared by a geotechnical specialist, provides a detailed profile of the ground conditions. It identifies the different soil layers, their strength, density, and composition, along with the depth of the water table and the presence of any rock. Without this data, any foundation design is purely speculative and unsafe.

Stage 3: Engineering Calculations and Pile Specification

Using the load requirements from Stage 1 and the soil data from Stage 2, engineers perform a series of calculations. These calculations determine the load-bearing capacity of the soil and, in turn, the specific configuration of the helical pile needed. The design will specify:

Shaft Diameter and Thickness: To ensure the pile can handle the applied loads without bending or buckling.
Helix Configuration: The number, diameter, and spacing of the helix plates, which determine how the pile achieves its bearing capacity in the soil.
Target Depth: The minimum depth the pile must be installed to reach a suitable load-bearing stratum.
Installation Torque: The rotational force required during installation that correlates to the pile’s load capacity.

Stage 4: Final Design Documentation and Certification

Once the design is finalised, the engineer produces a set of formal documents. This includes detailed drawings showing the location and specification of each pile, as well as a design statement. A formal engineering certification is issued, confirming that the design is safe, structurally adequate, and complies with all relevant Australian Standards, including AS 2159. This documentation is essential for building approvals and provides the installation team with a clear plan to follow.

The Critical Role of Geotechnical Investigation

A professional helical pile engineering design cannot exist without a thorough geotechnical investigation. Attempting to design a foundation without understanding the ground beneath it is a significant risk that can lead to foundation failure, structural damage, and costly repairs.

Why a Soil Report is Non-Negotiable

The soil report is the roadmap for foundation design. Australian ground conditions are incredibly varied, from highly reactive clay soils in Melbourne and Adelaide to soft, sandy soils along the coast. A soil report eliminates guesswork by providing objective data on what lies beneath the surface. It is a mandatory requirement under the National Construction Code and AS 2159 for good reason—it ensures the safety and long-term performance of the structure.

What a Geotechnical Report Reveals

A comprehensive geotechnical report provides engineers with the essential data they need to design a reliable foundation. It typically details the soil profile layer by layer, classifying each one (e.g., clay, silt, sand, gravel). The report provides critical parameters like soil strength and stiffness, which are used to calculate the ultimate load-bearing capacity. It also identifies potential issues such as the presence of uncontrolled fill, a high water table, or the depth to bedrock, all of which directly influence the helical pile design.

Designing for Australian Conditions: Soil Types and Challenges

Australia’s diverse geology presents unique challenges for foundation design. A key benefit of helical piles is their adaptability, which allows engineers to design effective solutions for even the most problematic ground conditions.

Reactive Clay Soils (Common in Adelaide, Melbourne, Western Sydney)

Reactive clay soils are notorious for causing foundation problems. These soils swell significantly when they absorb moisture during wet periods and shrink when they dry out.

This constant movement can cause conventional shallow foundations to lift and drop, leading to cracked walls and structural damage. The helical pile design for these sites involves screwing the piles deep into the ground, past the reactive clay layer, into a stable stratum below.

This anchors the building to stable ground, effectively bypassing the zone of seasonal moisture change and preventing movement.

Sandy and Coastal Soils (Found in Perth, Gold Coast)

Loose, sandy, or soft alluvial soils often have low load-bearing capacity, making them unsuitable for standard shallow footings. Helical piles are an excellent solution in these conditions.

As the pile is screwed into the ground, the helix plates compact the surrounding sand, increasing its density and bearing capacity. For coastal areas, corrosion protection is also a major design consideration.

Helical piles used in these environments are typically hot-dip galvanised to provide a durable barrier against the corrosive effects of salt and moisture, ensuring the foundation’s design life is met.

Uncontrolled Fill and Alluvial Sites

Many urban and developing areas are built on sites with uncontrolled fill or deep alluvial deposits.

These materials can be unstable and subject to long-term settlement. Designing with helical piles on these sites involves extending the piles through the poor-quality upper layers until they are founded in the firm, natural ground or bedrock below.

This ensures the building’s load is transferred to a competent bearing stratum, guaranteeing stability.

Compliance and Standards: Navigating AS 2159

In Australia, all piling work, including the design and installation of helical piles, is governed by a strict set of rules to ensure safety and quality. The primary standard for this is AS 2159 – Piling – Design and Installation.

What is AS 2159 – Piling Design and Installation?

AS 2159 is the Australian Standard that sets out the minimum requirements for the design, construction, and testing of all types of foundation piles.

It is referenced by the Building Code of Australia, making its provisions a legal requirement for construction projects.

The standard is comprehensive, covering everything from the scope of the geotechnical investigation to the materials used and the safety factors that must be applied in design calculations.

Key Requirements for Helical Pile Design under AS 2159

When it comes to helical pile design, AS 2159 mandates several key principles.

It requires that the design be based on a thorough geotechnical investigation and that engineers use accepted calculation methods to determine pile capacity.

The standard specifies minimum durability requirements, meaning the design must account for potential corrosion over the structure’s intended life.

It also outlines the procedures for load testing piles if required and sets the criteria for verifying pile capacity during installation, such as through torque monitoring.

The Importance of Engineering Certification

An engineering certification is the formal assurance that the helical pile design complies with AS 2159 and all other relevant codes.

This certificate, signed by a qualified professional engineer, confirms that the proposed foundation system is safe, adequate for the intended loads, and appropriate for the site’s ground conditions.

It is a critical document for obtaining building permits and provides peace of mind to builders, homeowners, and developers that the foundation is built to last.

Key Applications for Engineered Helical Piles in Australia

The versatility and efficiency of engineered helical piles make them suitable for an incredibly wide range of applications across Australia, from small residential jobs to major infrastructure projects.

Residential Construction

Helical piles are increasingly used for new home foundations, particularly on sites with challenges like sloping ground, poor soil, or restricted access.

They are also a perfect solution for extensions, elevated decks, and swimming pool foundations, where their low-impact installation process minimises disruption to existing properties and landscaping.

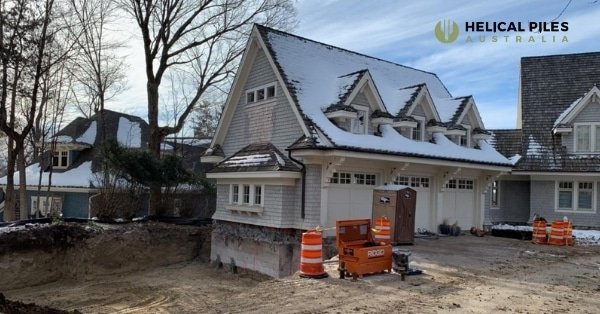

Foundation Repair and Underpinning

For existing buildings suffering from foundation settlement or subsidence, helical piles are a leading solution for foundation repair and underpinning.

Piles are installed adjacent to the failing foundation, and hydraulic jacks are used to lift and re-level the structure before it is permanently supported by the new piles. This method is far less invasive and much faster than traditional concrete underpinning.

Commercial and Industrial Projects

Engineered helical piles are used to support the foundations for a variety of commercial structures, including warehouses, retail centres, schools, and low-rise office buildings.

Their speed of installation helps keep large projects on schedule, and their ability to handle significant loads makes them a cost-effective alternative to other deep foundation systems.

Infrastructure and Specialised Applications

The application of helical piles extends to critical infrastructure. They are used for the foundations of solar farms, communication towers, pipeline supports, and bridges.

They are also ideal for environmentally sensitive projects like boardwalks and viewing platforms in national parks, as their installation causes minimal disturbance to the surrounding ecosystem.

Summary On Helical Pile Engineering Design in Australia

Ultimately, a helical pile engineering design is a specialised service that forms the bedrock of a safe and durable structure. It is a precise process that relies on accurate geotechnical data, proven engineering principles, and a deep understanding of Australian ground conditions. Adhering to the stringent requirements of AS 2159 ensures every design is robust, compliant, and built for longevity. By choosing a professionally engineered helical pile system, you are investing in certainty and long-term performance for your project.

Frequently Asked Questions About Helical Pile Engineering Design in Australia

How Do You Design a Helical Pile?

Designing a helical pile involves a multi-step engineering process. It starts with determining the building’s structural loads. Next, a geotechnical report is analysed to understand the soil conditions. Using this data, engineers calculate the required pile size (diameter and thickness), helix configuration (number and size of plates), and depth needed to safely support the loads, all in accordance with Australian Standard AS 2159.

What Is the Australian Standard for Piling?

The primary Australian Standard for piling is AS 2159:2009 – Piling – Design and Installation. This standard provides the minimum requirements for the design, construction, material specifications, and testing of all foundation piles, including helical piles, to ensure they are safe and perform as intended for the life of the structure.

What Is the Difference Between a Helical Pile and a Screw Pile?

In Australia, there is no technical difference between a helical pile and a screw pile. The terms are used interchangeably to describe the same foundation product: a steel shaft with helical plates that is screwed into the ground to provide foundational support.

What Are the Disadvantages of Helical Piles?

The main disadvantages of helical piles can include a higher upfront material cost compared to some traditional methods. They may not be suitable for ground with heavy obstructions like large boulders or solid bedrock close to the surface, as this can prevent installation. A thorough geotechnical investigation is essential to identify these potential issues beforehand.

Are Helical Piles Cheaper Than Concrete?

While the individual material cost of a helical pile might be more than for a concrete pier, the overall project cost is often lower. Savings come from significantly reduced installation time, minimal to no excavation and soil disposal costs, and smaller machinery requirements. Because there is no waiting for concrete to cure, construction timelines are shorter, which also reduces overall project costs.

How Do You Know if You Need Piling?

You may need piling if your construction site has poor ground conditions, such as soft clay, loose sand, or uncontrolled fill. A geotechnical engineer will recommend piling if a standard shallow foundation cannot achieve the required load-bearing capacity. Other indicators include building on a steep slope, in an area with highly reactive clay soils, or when a structure shows signs of settlement and requires underpinning.
